BMC trackmachine

Bikes > BMC > trackmachine

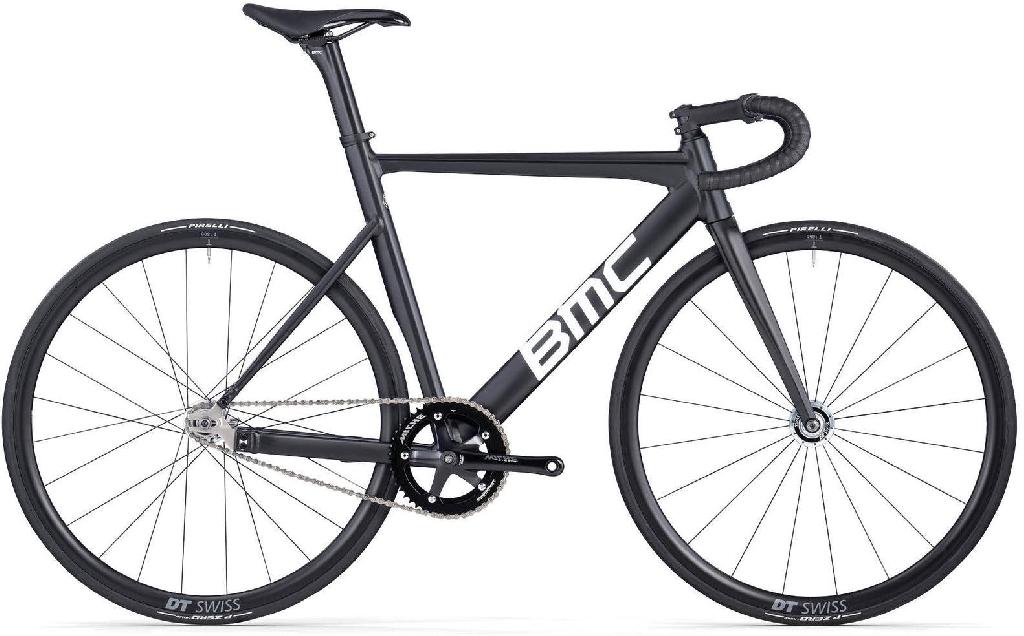

The Trackmachine TR01 was developed specifically for the Swiss National Track Team by the same BMC engineers who created the record-breaking Timemachine aero bike. In 2015, this is the bike that Rohan Dennis broke the UCI Hour Record on, and Stefan Küng rode to UCI World Championship gold in the Individual Pursuit. The Trackmachine TR01 is the weapon you need to dominate the boards in every race.

Geometrie – trackmachine TR01 Dura Ace Sprint
Grösse S M L
Stack mm 471 506 544
Reach mm 390 408 430
Sitzrohr st mm 505 542 582
Oberrohr tt' mm 525 553 585
Steuerrohr ht mm 94 134 163
Sitzwinkel sa ° 74 74 74
Steuerwinkel sa ° 72 72 72
Kettenstrebe rc mm 390-420 390-420 390-420
Front center fc mm 586 604 626
Radstand wb mm 963 981 1003
Tretlagerabsenkung mm 50 58 58
Gabellänge fl mm 363 363 363
Gabelvorlauf fr mm 48 48 48
Nachlauf mm 59 59 59
Kurbellänge mm 165 170 170
Vorbaulänge mm N / A N / A N / A
Vorbauwinkel ° N / A N / A N / A
Lenkerbreite mm 370 370 370
Lenker Drop mm 148 148 148
Lenkervorbiegung mm 82 82 82
Sattelstützen-Versatz mm +30 / +10 / -10 / -30 +30 / +10 / -10 / -30 +30 / +10 / -10 / -30
Überstandshöhe mm 751 779 817
