Bikes > BMC > Roadmachine > Roadmachine 01 FOUR SRAM

  • BMC Roadmachine 01 FOUR SRAM

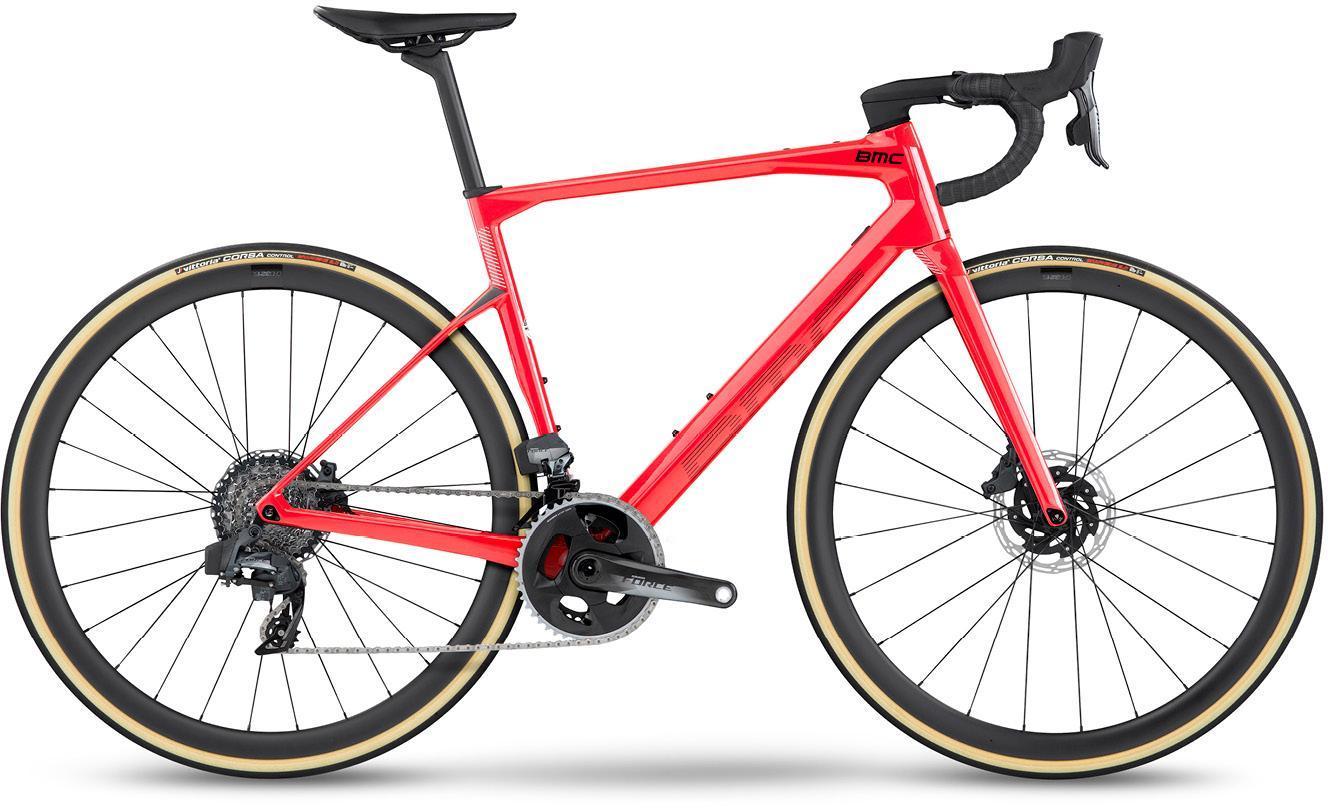

    Roadmachine 01 FOUR SRAM


    Sale

    CHF 3999 instead of 8299 -52%

    MSRP CHF 8299sell
    (For current prices, see our website.)

    Derailleur
    SRAM FORCE eTap AXS
    Brakes
    SRAM FORCE eTap AXS HRD - Centerline X Rotors (160/160)
    Frame
    Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance
    ICS Technology Stealth Cable Routing
    PF86 Bottom Bracket
    Flat Mount Disc
    12x142mm Thru-Axle
    Fork
    Teammachine SLR Carbon
    TCC Race Compliance Level
    Internal Cable Routing
    Flat Mount Disc
    Stealth Dropout Design
    12x100mm Thru-Axle
    Rims
    CRD-321 SL Carbon - Tubeless Ready - 35mm
    • Frame Roadmachine 01 Premium Carbon with Tuned Compliance Concept Endurance
      ICS Technology Stealth Cable Routing
      PF86 Bottom Bracket
      Flat Mount Disc
      12x142mm Thru-Axle
    • Fork Teammachine SLR Carbon
      TCC Race Compliance Level
      Internal Cable Routing
      Flat Mount Disc
      Stealth Dropout Design
      12x100mm Thru-Axle
    • Chainwheel SRAM FORCE AXS 46-33T
    • Cassette SRAM FORCE XG-1270 10-36T
    • Chain SRAM FORCE 12 Speed
    • Shifters SRAM FORCE eTap AXS HRD
    • Brakes SRAM FORCE eTap AXS HRD - Centerline X Rotors (160/160)
    • Handlebar BMC RAB 02 - Ergo Top Shape - Compact Bend
    • Stem BMC ICS2 - Integrated Cockpit Design
    • Seatpost Roadmachine 01 Premium Carbon D-Shaped Seatpost
      15mm Offset
    • Seat Fizik Argo Tempo R5 (150mm)
    • Hubs CRD-321 SL
    • Rims CRD-321 SL Carbon - Tubeless Ready - 35mm
    • Tires Vittoria Corsa N.EXT - 28mm
    • Note
      Weight: /
      Max Weight: 110 Kg
    Geometrie – roadmachine 01 Dura Ace Di2
    Grösse 47 51 54 56 58 61
    Stack mm 514 / 530 539 / 555 560 / 576 574 / 590 593 / 609 617 / 633
    Reach mm 375 / 369 378 / 372 387 / 382 393 / 388 400 / 395 407 / 402
    Sitzrohr st mm 420 464 507 522 539 573
    Oberrohr tt' mm 522 532 546 556 568 583
    Steuerrohr ht mm 95 122 138 154 173 198
    Sitzwinkel sa ° 74.2 74.2 74.2 74.2 74.2 74.2
    Steuerwinkel sa ° 71.2 71.2 72 72 72 72
    Kettenstrebe rc mm 410 410 410 410 410 410
    Front center fc mm 583.7 595 597 608 622 636
    Radstand wb mm 983 995 997 1008 1022 1036
    Tretlagerabsenkung mm 71 71 71 71 71 71
    Gabellänge fl mm 369 369 369 369 369 369
    Gabelvorlauf fr mm 50 50 45 45 45 45
    Nachlauf mm 63 63 63 63 63 63
    Kurbellänge mm 170 170 172.5 172.5 172.5 175
    Vorbaulänge mm 90 90 100 110 120 120
    Vorbauwinkel ° -12.5 -12.5 -12.5 -12.5 -12.5 -12.5
    Lenkerbreite mm 400 420 420 420 440 440
    Lenker Drop mm 125 125 125 125 125 125
    Lenkervorbiegung mm 70 70 70 70 70 70
    Sattelstützenlänge mm 250 250 310 310 310 310
    Sattelstützen-Versatz mm 15 15 15 15 15 15
    Überstandshöhe mm 717 757 786 803 820 849
    Unfortunately this model is sold out!
