Bikes > BMC > Teammachine > Teammachine SLR FOUR

  • BMC Teammachine SLR FOUR

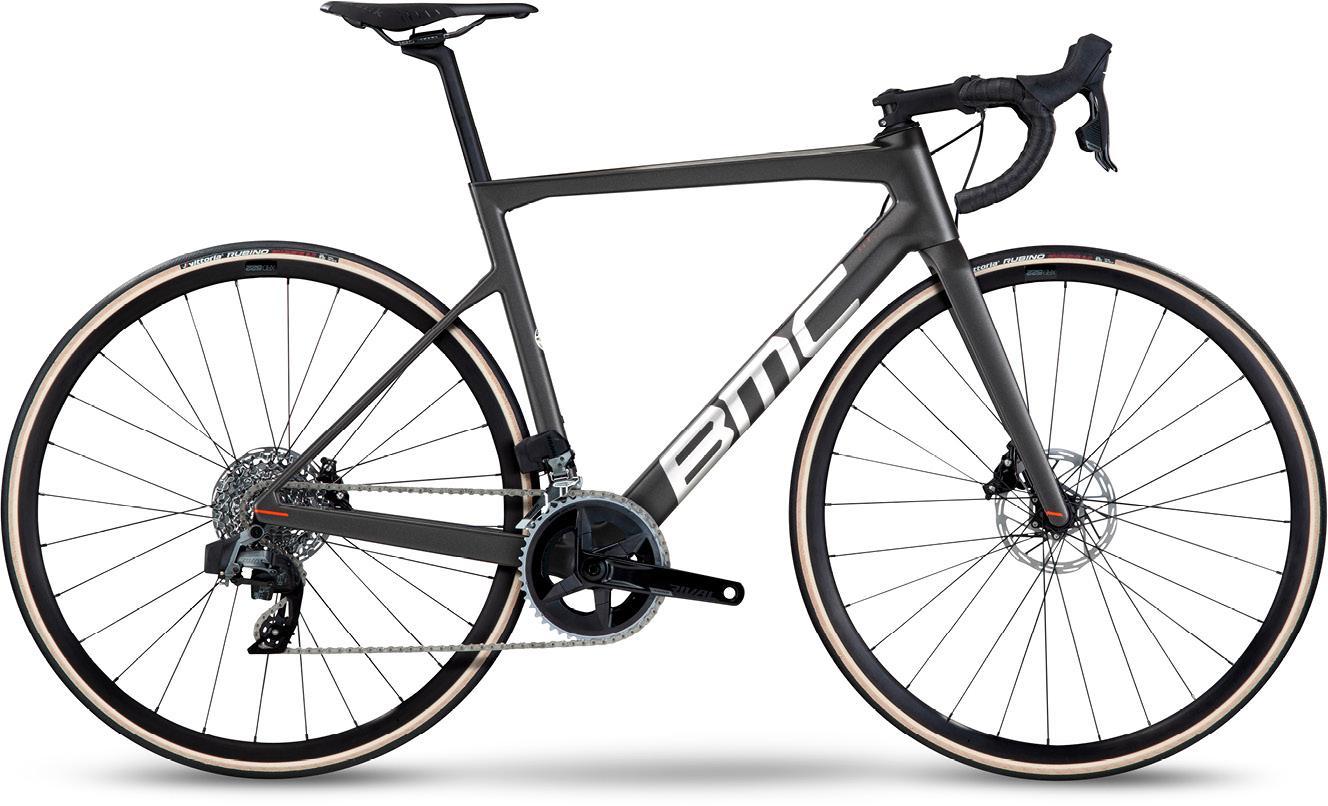

    Teammachine SLR FOUR


    Sale

    CHF 2499 instead of 5099 -51%

    MSRP CHF 5099sell
    (For current prices, see our website.)
    Derailleur
    SRAM RIVAL eTap AXS
    Brakes
    SRAM Rival eTap AXS HRD - Centerline X Rotors (160/160)
    Frame
    Teammachine SLR Carbon with Aerocore Design
    Stealth Dropout Design
    TCC Race Compliance Level
    PF86 Bottom Bracket
    Flat Mount Disc
    12x142mm Thru-Axle
    Optimized for Aerocore Bottle Cages
    Fork
    Teammachine SLR Carbon
    TCC Race Compliance Level
    Internal Cable Routing
    Flat Mount Disc
    Stealth Dropout Design
    12x100mm Thru-Axle
    Rims
    XRD-522 - Tubeless Ready - 25 mm
    • Frame Teammachine SLR Carbon with Aerocore Design
      Stealth Dropout Design
      TCC Race Compliance Level
      PF86 Bottom Bracket
      Flat Mount Disc
      12x142mm Thru-Axle
      Optimized for Aerocore Bottle Cages
    • Fork Teammachine SLR Carbon
      TCC Race Compliance Level
      Internal Cable Routing
      Flat Mount Disc
      Stealth Dropout Design
      12x100mm Thru-Axle
    • Chainwheel SRAM RIVAL AXS 48-35T
    • Cassette SRAM RIVAL XG-1250 10-36T
    • Chain SRAM RIVAL 12 Speed
    • Shifters SRAM RIVAL eTap AXS HRD
    • Brakes SRAM Rival eTap AXS HRD - Centerline X Rotors (160/160)
    • Handlebar BMC RAB 02 - Ergo Top Shape - Compact Bend
    • Stem BMC RSM01
    • Seatpost Teammachine SLR Carbon D-Shaped Seatpost
      15mm Offset
    • Seat Fizik Antares R7
    • Hubs XRD-522
    • Rims XRD-522 - Tubeless Ready - 25 mm
    • Tires Vittoria Rubino - 25mm
    • Note
      Weight: /
      Max Weight: 110 Kg
    Geometrie – teammachine SLR01 Dura Ace Di2
    Grösse 48 51 54 56 58 61
    Stack mm 506 530 550 565 584 608
    Reach mm 370 378 387 392 402 410
    Sitzrohr st mm 475 505 535 555 575 605
    Oberrohr tt' mm 520 535 550 560 575 590
    Steuerrohr ht mm 108 128 148 163 183 208
    Sitzwinkel sa ° 73.5 73.5 73.5 73.5 73.5 73.5
    Steuerwinkel sa ° 70.5 72 72.5 72.5 72.5 72.5
    Kettenstrebe rc mm 402 402 402 402 402 402
    Front center fc mm 571 575 586 596 611 626
    Radstand wb mm 963 967 978 988 1003 1019
    Tretlagerabsenkung mm 69 69 69 69 69 69
    Gabellänge fl mm 370 370 370 370 370 370
    Gabelvorlauf fr mm 41.6 41.6 41.6 41.6 41.6 41.6
    Nachlauf mm 76 66 63 63 63 63
    Kurbellänge mm 170 170 172.5 172.5 172.5 175
    Vorbaulänge mm 90 100 110 120 130 130
    Vorbauwinkel ° +/- 6 +/- 6 +/- 6 +/- 6 +/- 6 +/- 6
    Lenkerbreite mm 420 420 420 440 440 440
    Lenker Drop mm 123 123 123 123 123 123
    Lenkervorbiegung mm 77 77 77 77 77 77
    Sattelstützenlänge mm 300 300 300 300 300 300
    Sattelstützen-Versatz mm 15 15 15 15 15 15
    Überstandshöhe mm 726 754 779 797 814 843
