BMC Speedfox 03 ONE

Bikes > BMC > speedfox > Speedfox 03 ONE

  • Speedfox 03 ONE

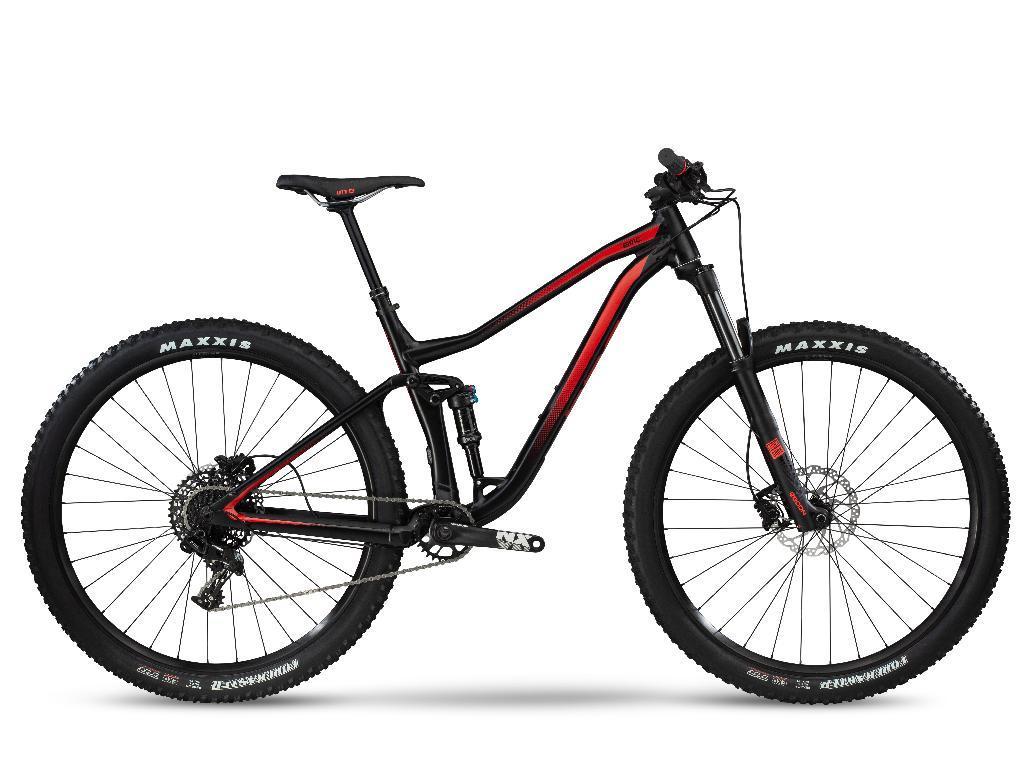

    Speedfox 03 ONE


    Spring Sale
    CHF 2189 instead of 2999 -27%

    Derailleur
    SRAM NX
    Brakes
    Shimano BR-MT500 (180/180mm)
    Frame
    Speedfox 03 - Advanced Pivot System, BSA 73mm Bottom Bracket, 12 x 148mm Thru-axle
    Fork
    RockShox Recon RL (130mm/120mm)*, 15x110mm thru-axle
    Rear Shock
    Fox Float DPS, Performance, Evol, (130mm/120mm)**
    • Frame Speedfox 03 - Advanced Pivot System, BSA 73mm Bottom Bracket, 12 x 148mm Thru-axle
    • Tubing 03 Alloy, Al-13 Triple-butted aluminum (F&R)
    • Size S (27,5) / M (29) / L (29) / XL (29)
    • Fork RockShox Recon RL (130mm/120mm)*, 15x110mm thru-axle
    • RearShock Fox Float DPS, Performance, Evol, (130mm/120mm)**
    • Gears 1x11
    • Chainwheel SRAM NX 30T
    • Cassette SRAM PG 1130 11-42T
    • Chain SRAM NX
    • Shifters SRAM NX
    • Brakes Shimano BR-MT500 (180/180mm)
    • Handlebar BMC MRB 03, 760mm
    • Stem BMC AMSM 02
    • Seatpost X-Fusion Manic, 150mm ***
    • Seat WTB Silverado Sport
    • Hubs Shimano Deore
    • Rims Alex MD30**
    • Tires Maxxis Forekaster EXO, 27,5 or 29x2.35
    • Color Lava
    • Note */** 27.5" Wheels-130mm / 29" Wheels - 120mm
      *** Tubeless rim strip installed, valve included

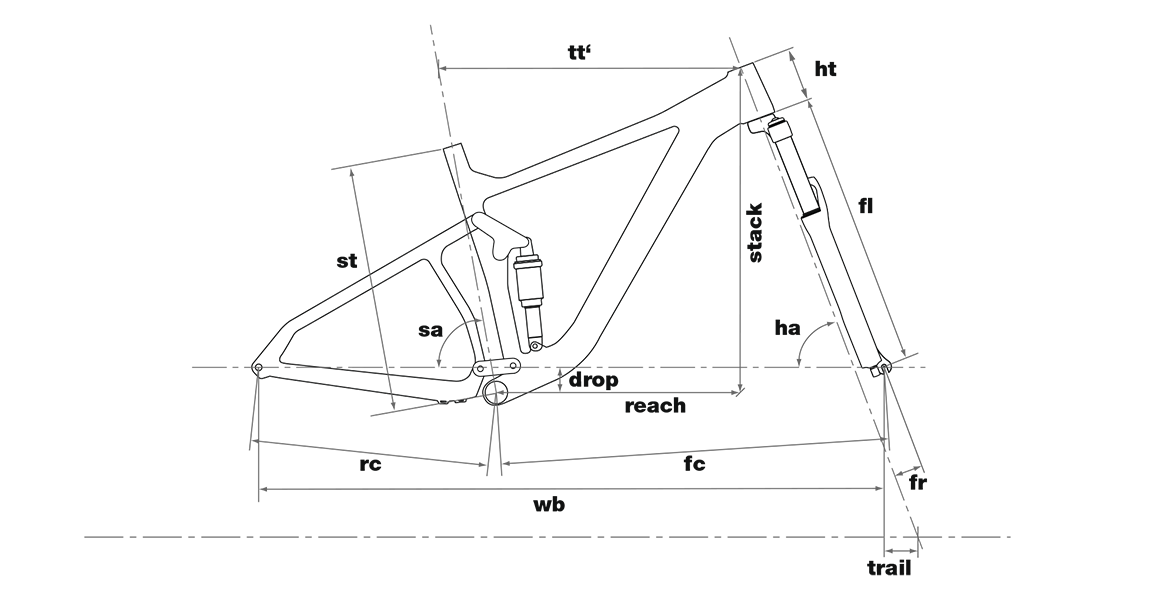

    Geometry – speedfox 01 XTR
    Grösse XS S M L XL
    Stack mm 598 602 607 612 616
    Reach mm 395 415 435 455 475
    Sitzrohr st mm 390 420 460 500 530
    Oberrohr tt' mm 566 588 609 630 652
    Steuerrohr ht mm 90 95 100 105 110
    Sitzwinkel sa ° 74 74 74 74 74
    Steuerwinkel sa ° 68.5 68.5 68.5 68.5 68.5
    Kettenstrebe rc mm 435 435 435 435 435
    Front center fc mm 672 694 716 738 760
    Radstand wb mm 1105 1127 1149 1171 1192
    Tretlagerabsenkung mm 35 35 35 35 35
    Gabellänge fl mm 535 535 535 535 535
    Gabelvorlauf fr mm 51 51 51 51 51
    Nachlauf mm 91 91 91 91 91
    Kurbellänge mm 170 170 175 175 175
    Vorbaulänge mm 70 70 70 70 70
    Vorbauwinkel ° 6 6 6 6 6
    Lenkerbreite mm 720 720 720 720 720
    Lenkerhöhe mm 4 4 4 4 4
    Backsweep ° 9 9 9 9 9
    Sattelstützenlänge mm 100x355 125x380 150x430 150x430 150x430
    Überstandshöhe mm 740 745 758 766 781
